InnovationLab Demonstrates New PCB Production Method Based on Additive Manufacturing

Develops a sustainable and cost-efficient solution for copper-based solderable circuits to replace etching processes.

Author Image

By: DAVID SAVASTANO

Editor, Ink World Magazine

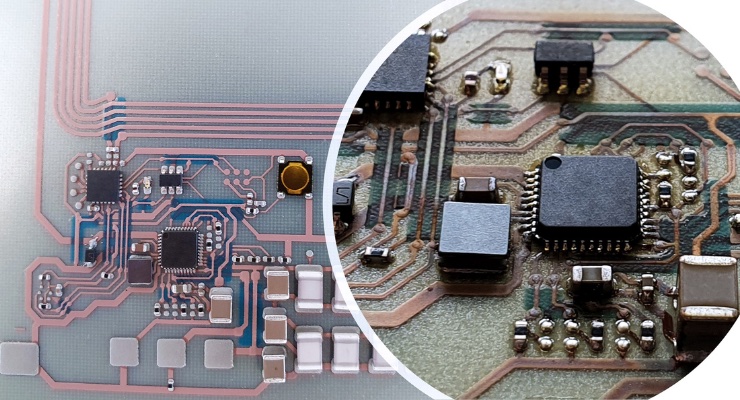

InnovationLab announced it has achieved a breakthrough in additive manufacturing (AM) of printed circuit boards (PCBs), helping meet higher environmental standards for electronics production while also reducing costs. Within the research project SmartEEs2, funded by Horizon 2020, InnovationLab and its partner ISRA have developed a manufacturing process for copper-based solderable circuits. The circuits are screen printed and are compatible with conventional reflow processes. Producing prin...
